Type W Tungsten Carbide Wire Drawing Nibs

Tungsten Carbide wire drawing nibs was pressed into steel holder, to work as a wire drawing die, which was widely used in the production of wire, cable, tube, and other related products. As the parameters of tungsten carbide, the dies can last longer time and need less replacement and maintain, which make it more profitable for users. As there’re many different kinds of wire/tube/rod products, there’re various kinds of different wire drawing dies and nibs, including types S11 series, S12 series, S13 series, W series, WTA series, R series, etc.

 Features

-- Fast delivery and high quality
-- 3times wear resistance
-- Different grades for option
-- Sintered in HIP Furnace
-- OEM & ODM are welcomed
-- After-sale service timely

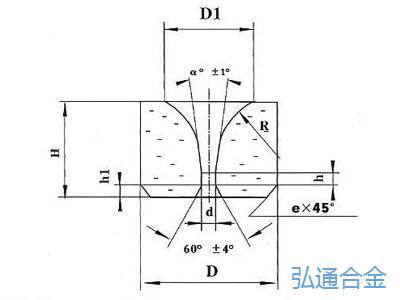

 Common shape and size see below:

Type D H d h ɑ°
W102—d 9 6 0.4—1.3 0.4—0.7 12°
W103—d 12 8 0.2—2.7 0.5—1.4 14°
W104—d 15 10 0 5—5.0 0.5—2.0 14°
W105—d 20 14 1.0—7.5 0.8—2.0 14°—16°
W106—d 25 18 5.3—8.0 1.9—2.2 16°
W107—d 30 22 2.9—11.7 2.2—3.6 16°
W109—d 35 25 6.0—1.6 2.5—4.8 16°
W109—d 40 27 10.3—16.5 3.2—4.6 18°
W110—d 50 30 14.4—19.4 4.4—4.8 18°
W111—d 60 35 19.5—27 4.9—5.6 18°
W112—d 70 40 24.5—31.5 5.4—6.0 18°

 Recommend grades and specifications:

Grade No. Density
(g/cm3)
HRA T.R.S
(Mpa)
Application
YG3X 14.9 ≥91.5 ≥1300 For drawing non-ferrous metal wire and stainless-steel wire etc.
YG6 14.8 ≥90.0 ≥2150 For drawing steel wire and stainless-steel wire etc.
YG6X 14.8 ≥92.0 ≥1860 For drawing nonferrous metal wire, steel wire, stainless steel wire. Good wear resistance and high toughness.
YG8 14.8 ≥89.5 ≥2320 For drawing steel wire, stainless steel wire. Good general performance.
YG11 14.4 ≥88.5 ≥2420 For fabricating drawing dies of steel tubes and rods under high compressibility ratio; punching, stamping, forging tools under
large stress.

 Application

1. Tungsten carbide with high hardness, high wear resistance and high red hardness, at 550℃ still maintain more than 56HRC hardness.

2. Has a high modulus of elasticity, generally is (4~7)×104kg / mm2, and excellent rigidity at room temperature.

3. Have a high compressive strength which is greater than 6000MPa.

4. Have good resistance to oxidation and corrosion resistance, acid resistance, alkali resistance and high temperature not easily oxidized.

5. Has a low coefficient of thermal expansion, suitable for manufacturing high, precision, sharp die.
