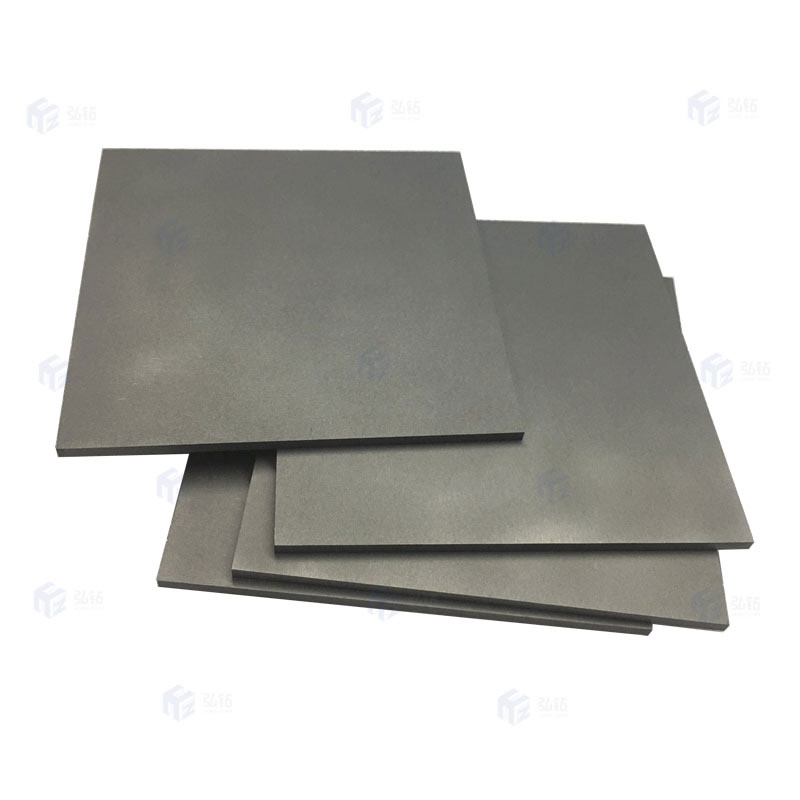

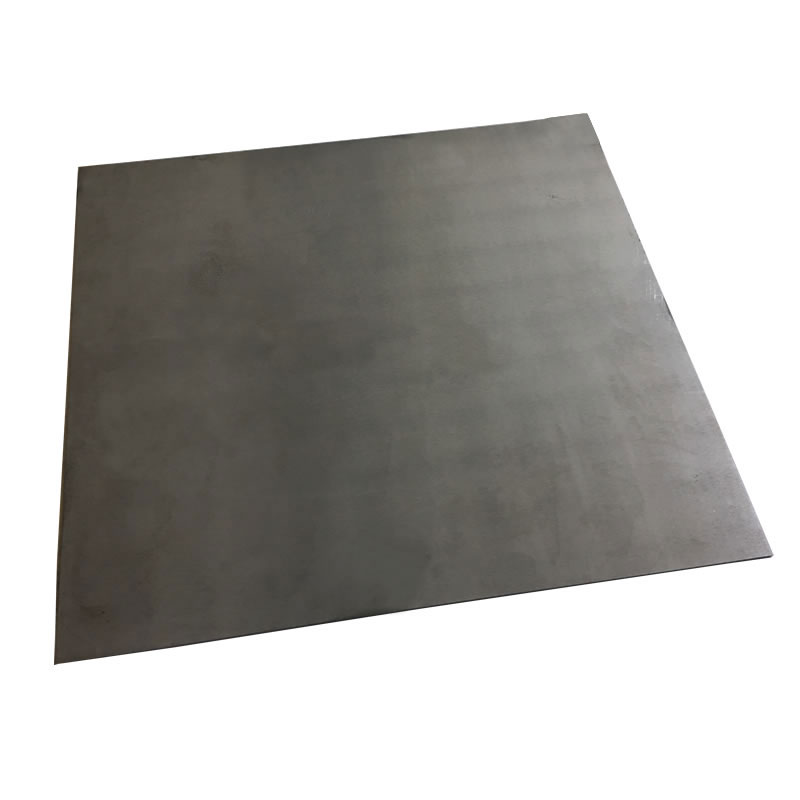

200x200mm Tungsten Carbide Plate

Tungsten carbide plates have high hardness, high wear-resistance, and high resistance to bending. They're widely used in cutting tool, crusher, wear parts, mold base and other related fields.

 Features

1. 100% raw material.
2. Sintered in HIP furnace
3. ISO9001: 2015 certificate.
4. Various size and grade available.
5. More than 20 years’ experience.
6. OEM and ODM are accepted.

 Common shape and size see below:

L mm W mm S mm
300 160 7-25
260 260 7-25
200 200 7-25
150 150 7-20
150 130 7-20
150 80 7-20
120 120 7-15
100 100 7-15
100 50 7-15

 Recommend grades and specifications:

Grade Binder (Wt %) Density (g/cm3) Hardness (HRA) TRS (≥N/mm²)
YG6 6 14.9 90.5 2100
YG6A 6 14.95 92 2000
YG8 8 14.8 89.5 2200
YG13 13 14.2 87.5 2650
YG8C 8 14.7 88 2300
YG15 15 14 87 2750
YG20 20 13.5 85.5 2850

 Application of the tungsten carbide plate

They're widely used in cutting tool, crusher, wear parts, mold base and other related fields.

Related Products

As a professional tungsten carbide manufacturer from China, with more than 20 years’ experience, we have skilled engineers and technical know-how, to meet any of your carbide request.
